What Do Dryer Vent Warning Codes & Lights Mean?
Modern dryers can detect conditions associated with restricted exhaust airflow and may display a warning code, Check Vent light, airflow indicator, or vent symbol when a problem is detected.
LG dryers commonly use d75, d80, d90, and d95 Flow Sense™ codes. Some Whirlpool and Maytag dryers
use an AF or Check Vent warning, while certain Samsung dryers use a Vent Check indicator.
These warnings can indicate lint buildup inside the dryer vent, but that is not the only possible cause. A crushed transition hose, obstructed exterior vent, excessive duct length, improper vent configuration, damaged ductwork, or another restriction can also reduce dryer exhaust airflow.
The important takeaway is simple:
A dryer vent warning means the cause of the airflow restriction should be identified—not simply that an error code needs to be cleared.

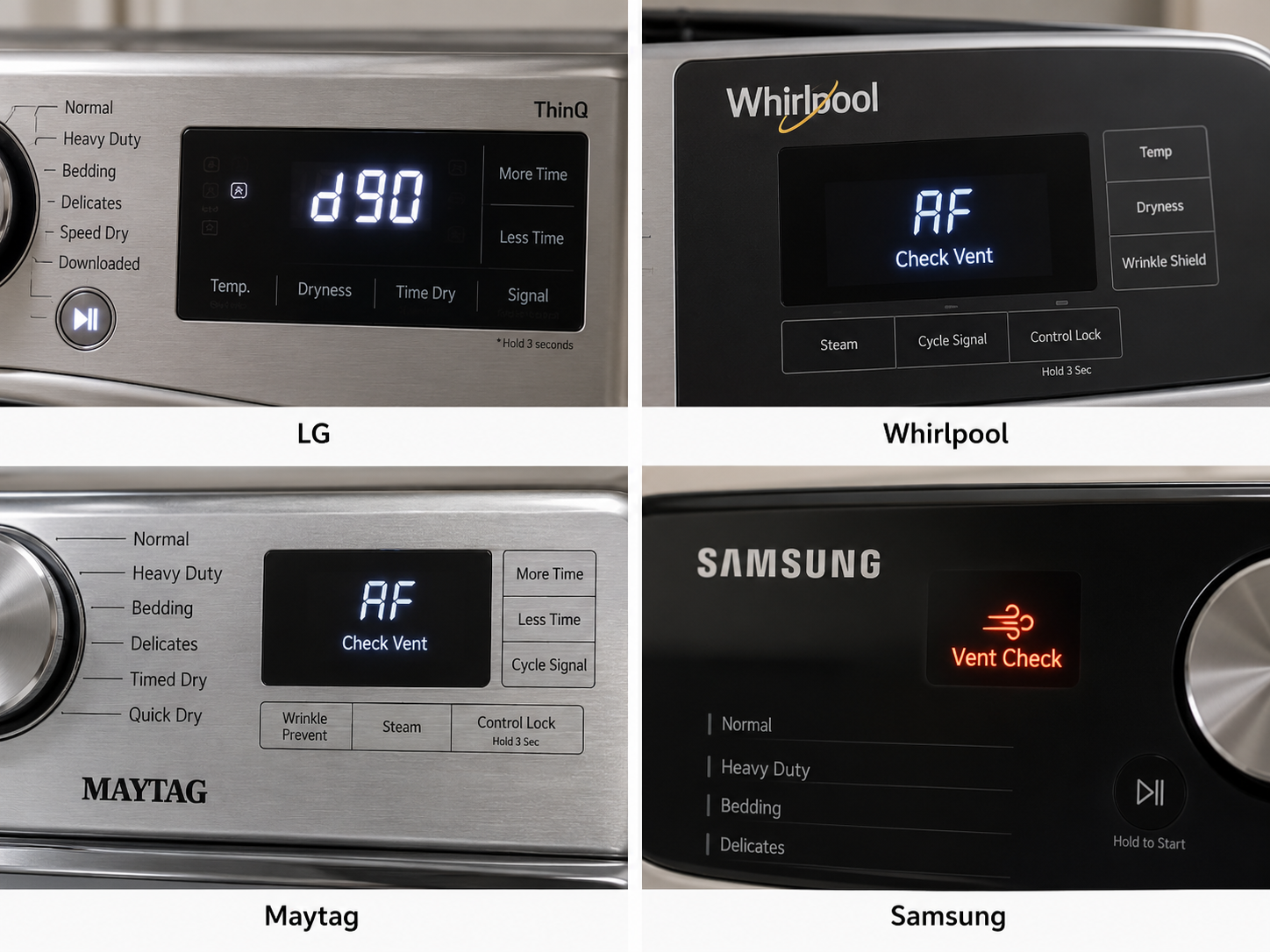

Dryer Vent Warning Codes at a Glance
| Dryer Brand | Warning or Indicator | What It Means |
|---|---|---|
| LG | d75 | Approximately 75% exhaust restriction detected |
| LG | d80 | Approximately 80% exhaust restriction detected |
| LG | d90 | Approximately 90% exhaust restriction detected |
| LG | d95 | Approximately 95% exhaust restriction detected |
| Whirlpool | AF | Restricted airflow detected |
| Whirlpool | Check Vent | Low airflow or blocked vent condition detected |
| Maytag | AF | Restricted airflow detected |
| Maytag | Check Vent | Low airflow or blocked vent condition detected |
| Samsung | Vent Check indicator | Exhaust restriction detected; applicable models may illuminate the indicator at approximately 60% restriction and blink at approximately 80% |
What Does an LG Dryer Flow Sense Warning Mean?
LG uses its Flow Sense™ duct blockage sensing system on many dryers to identify restricted exhaust airflow. According to LG, the dryer may display d75, d80, d90, or d95, with the number corresponding to the approximate percentage of exhaust restriction detected. LG also states that the restriction can occur somewhere between the dryer and the exterior exhaust termination. LG Dryer Error Code Information →What Does the d75 Code Mean on an LG Dryer?
An LG dryer d75 code means the dryer has detected approximately 75% restriction in the exhaust system. The restriction may be caused by lint accumulation, but other problems should also be considered, including a compressed transition duct, obstruction at the exterior vent, excessive duct length, numerous turns, or improper vent installation. A d75 warning should therefore be treated as an airflow problem that needs to be investigated rather than simply assuming that the dryer itself needs repair.What Does the d80 Code Mean on an LG Dryer?
An LG dryer d80 code means the Flow Sense system has detected approximately 80% exhaust restriction. At this level, airflow through the dryer exhaust system is significantly reduced. Possible causes include:- Lint accumulation inside the dryer vent
- A crushed or kinked transition hose
- An obstructed exterior dryer vent
- A damper that is not opening properly
- Bird nesting or debris
- Excessive duct length
- Too many elbows or turns
- Damaged, disconnected, or improperly installed ductwork
What Does the d90 Code Mean on an LG Dryer?
An LG dryer d90 code means the dryer has detected approximately 90% restriction in the exhaust system. This indicates a severe airflow problem. A dryer may still move some air through the exterior termination while displaying a d90 warning. Feeling air outside does not necessarily prove that the dryer vent is operating without significant restriction. The complete exhaust path should be considered, including:- The connection immediately behind the dryer
- The concealed dryer vent
- Elbows and transitions
- The exterior termination
- The overall length and configuration of the system
What Does the d95 Code Mean on an LG Dryer?
An LG dryer d95 code means the dryer has detected approximately 95% exhaust restriction. This is the most severe of the commonly displayed LG Flow Sense restriction codes. A d95 code should not simply be reset and ignored. The dryer exhaust system should be checked to determine why airflow is being restricted so heavily. Lint buildup is one possibility, but severe airflow restriction can also result from a collapsed transition hose, blocked exterior termination, bird nesting, improper vent material, disconnected or damaged ductwork, or a poorly designed dryer vent system.Why Does My LG Dryer Still Show d80 or d90 After the Vent Was Cleaned?
A Flow Sense warning that remains after dryer vent cleaning is an important clue. It does not necessarily mean the cleaning was unsuccessful, nor does it automatically mean the dryer is defective. The dryer may still be detecting airflow restriction caused by something other than lint. Possible causes include:- A transition hose compressed behind the dryer
- A restrictive exterior vent cover
- A damper that does not fully open
- Excessive dryer vent length
- Too many elbows
- Improper duct sizing or material
- A concealed crushed or damaged section
- Poor vent routing
- An obstruction that was not removed
- An appliance-specific issue requiring evaluation by the manufacturer or an appliance technician
What Does AF Mean on a Whirlpool Dryer?
On applicable Whirlpool dryers, AF means Restricted Air Flow. Whirlpool states that an AF or Check Vent warning can indicate that the lint screen or exhaust vent is clogged, the vent is crushed or kinked, or the vent system contains too many turns. Whirlpool also recommends checking the exterior exhaust hood and the vent connection behind the dryer. Whirlpool AF and Check Vent Information →Why Is the Check Vent Light On My Whirlpool Dryer?
A Whirlpool Check Vent light indicates that the dryer has detected restricted airflow through the dryer and exhaust vent system on applicable models. The dryer may continue operating while the warning is displayed, but restricted airflow can negatively affect drying performance. Whirlpool recommends checking for conditions including:- A crushed vent connection behind the dryer
- Lint or debris in the dryer vent
- An obstructed exterior vent hood
- Excessive vent length
- Too many elbows or turns
What Does AF Mean on a Maytag Dryer?
On applicable Maytag dryers, AF indicates Restricted Air Flow. Maytag identifies several possible causes, including a clogged lint screen or dryer vent, crushed or kinked venting, and a vent configuration containing too many turns. If cleaning the lint filter does not correct the warning, the complete dryer exhaust system should be considered. Maytag AF and Check Vent Information →Why Is the Check Vent Light On My Maytag Dryer?
On applicable Maytag dryers, the Check Vent indicator means the dryer has detected a blocked vent or low-airflow condition. Maytag notes that the dryer may continue to operate while the warning is displayed, although poor airflow can increase drying times and affect performance. The problem may be lint accumulation, but the vent connection, exterior termination, routing, length, and number of turns should also be evaluated. Maytag Check Vent Light Information →What Does the Vent Check Light Mean on a Samsung Dryer?
Certain Samsung dryers use a Vent Check indicator rather than displaying an airflow percentage as a code. According to Samsung, on applicable models the Vent Check indicator:- Illuminates when the exhaust vent is approximately 60% restricted
- Blinks when approximately 80% restriction is detected
A Dryer Vent Warning Does Not Always Mean the Vent Is Dirty
This is one of the most important things to understand about dryer airflow warnings. Lint accumulation is common, but cleaning is not the solution to every airflow problem. The dryer is responding to airflow conditions. It generally cannot tell the homeowner precisely why airflow is restricted. During dryer vent inspections, conditions that can contribute to poor airflow include:Lint Buildup Inside the Dryer Vent
Lint that escapes the dryer’s lint filter can accumulate along the inside of the exhaust duct. As buildup increases, the available area for airflow decreases.Crushed Dryer Transition Hose
The short connection between the dryer and the wall can become compressed when the dryer is pushed backward. A severely compressed transition duct can create considerable restriction even when the dryer vent inside the home is relatively clean.Restricted Exterior Dryer Vent
Lint can accumulate around the exterior termination and prevent a damper or louvers from fully opening. Some exterior vent designs are also inherently more restrictive than others.Bird Nests and Exterior Debris
Dryer vents that terminate through exterior walls, roofs, or soffits may become obstructed by bird nesting, insects, debris, or damaged vent components.Excessive Dryer Vent Length
The longer the vent system becomes, the more resistance the dryer must overcome to exhaust air outdoors.Too Many Elbows and Turns
Every change in direction increases airflow resistance. A dryer vent containing several elbows can perform differently from a short, straight vent even when both systems are clean.Improper Dryer Vent Material
Improper flexible materials, undersized ductwork, damaged duct, excessive transitions, or other installation problems can restrict airflow.Damaged or Disconnected Ductwork
Concealed dryer vents can sometimes become crushed, separated, or damaged. Cleaning equipment cannot correct a physical defect in the duct itself.Can the Dryer Vent Be Clogged Even If Air Is Coming Out Outside?
Yes. Air coming from the exterior dryer vent confirms that the system is not completely blocked, but it does not establish that airflow is adequate. A partially restricted vent can still discharge air outside while creating enough resistance to increase drying times or trigger an airflow warning. The amount of airflow, the way the exterior damper operates, the dryer vent configuration, and the condition of the ductwork all matter.Can a Crushed Dryer Hose Cause a d80 or Check Vent Warning?
Yes. A crushed or kinked dryer transition duct can significantly restrict exhaust airflow and may contribute to an airflow warning. This commonly occurs when the dryer is pushed too close to the wall and compresses the connection behind it. Before assuming the concealed dryer vent is clogged, check the connection immediately behind the dryer if it can be safely accessed.Can the Exterior Dryer Vent Cause a Flow Sense or Check Vent Warning?
Yes. The exterior termination is part of the dryer exhaust system and can restrict airflow when:- Lint accumulates behind the damper or louvers
- A damper becomes damaged or stuck
- A pest guard becomes clogged with lint
- Bird nesting or debris blocks the opening
- The installed termination is too restrictive for dryer exhaust
- The exhaust duct extends improperly into the termination and interferes with its operation
Should I Call an Appliance Repair Company or a Dryer Vent Cleaning Company?
That depends on what the dryer is reporting and what is causing the problem. When a dryer specifically reports restricted exhaust airflow, a vent blockage, Flow Sense warning, Check Vent warning, or Vent Check indicator, evaluating the home’s dryer exhaust system is a logical first step. The dryer vent is part of the home rather than the appliance itself. Appliance manufacturers including LG, Whirlpool, and Maytag specifically direct consumers experiencing certain airflow warnings to inspect or clean the home’s venting system and, when necessary, contact a vent-cleaning specialist. If the home’s vent system is confirmed to be clear and properly configured but the warning continues, the next step may be troubleshooting the appliance itself with the manufacturer or a qualified appliance repair professional.What to Check Before Scheduling Dryer Vent Service
There are several simple checks a homeowner can perform without disassembling the dryer vent system.1. Clean the Dryer’s Lint Filter
Remove lint from the filter and verify that the screen is not coated with residue.2. Look Behind the Dryer
If safely accessible, check whether the transition duct has been crushed or kinked behind the appliance.3. Check the Exterior Termination
While the dryer is operating, verify that the exterior damper opens and that lint, vegetation, nesting material, or other debris is not visibly obstructing the termination.4. Pay Attention to Drying Performance
A warning accompanied by unusually long drying times, excessive heat, or poor exterior airflow provides additional evidence that the exhaust system should be investigated.5. Do Not Assume Resetting the Dryer Fixed the Problem
Some warnings disappear when a cycle ends or the dryer is restarted. That does not necessarily mean the condition responsible for the warning has been corrected.How 360 Dryer Vent Cleaning Investigates Airflow Warnings
When a dryer is displaying a vent or airflow warning, the goal should be to determine why the dryer is experiencing restricted exhaust airflow. 360 Dryer Vent Cleaning provides professional dryer vent cleaning in Kansas City with an emphasis on evaluating the complete vent system rather than simply running cleaning equipment through the duct. Depending on accessibility and the configuration of the individual system, service may include:Inspection of the Dryer Connection
The connection behind the dryer is evaluated for obvious restrictions, improper materials, damage, or compression.Camera Inspection of the Dryer Vent
When the system can be safely accessed, a camera is used to inspect the vent before cleaning. This helps identify lint accumulation as well as physical conditions that cleaning alone may not correct.Dryer Vent Cleaning
Specialized dryer vent cleaning equipment is used to loosen and remove accumulated lint and debris throughout the vent system.Exterior Termination Inspection
The exterior dryer vent is checked for lint accumulation, restriction, proper damper operation, and other visible problems.Post-Service Verification
The vent is evaluated again after cleaning so the final condition can be documented and remaining problems can be identified. If cleaning reveals that the problem is actually damaged, improperly configured, or unsuitable ductwork, dryer vent repair or replacement may be recommended rather than representing cleaning as a complete solution.Dryer Showing d80, d90, Check Vent or Another Airflow Warning in Kansas City?
If your dryer is displaying an airflow or vent warning in the Kansas City metro area, the problem may be within the home’s dryer exhaust system rather than the dryer itself. 360 Dryer Vent Cleaning provides dryer vent inspection and cleaning throughout the Kansas City area, including communities such as:- Lee’s Summit
- Kansas City
- Overland Park
- Olathe
- Lenexa
- Shawnee
- Leawood
- Blue Springs
- Independence
- Raymore
- Belton
- Liberty
- Gladstone
- And surrounding Kansas City communities
Frequently Asked Questions About Dryer Vent Warning Codes
Does an LG d80 code mean my dryer vent is 80% clogged?
LG describes d80 as approximately 80% exhaust restriction detected by its Flow Sense system. The restriction may be caused by lint, but a crushed duct, restricted exterior termination, excessive vent length, or another airflow problem may also contribute.Does an LG d90 code mean the dryer is broken?
Not necessarily. LG states that d90 indicates approximately 90% restriction in the dryer exhaust system. The dryer vent and its connection to the exterior should be evaluated before assuming the appliance itself has failed.What is the difference between LG d80, d90 and d95?
The numbers represent increasingly severe exhaust restriction detected by the dryer. LG identifies d80 as approximately 80%, d90 as approximately 90%, and d95 as approximately 95% restriction.Will cleaning the dryer vent clear a d80 or d90 warning?
It may, if lint accumulation is responsible for the restriction. If the warning is caused by a crushed transition hose, vent design, excessive length, restrictive exterior termination, damaged ductwork, or another condition, cleaning alone may not correct it.Why does my dryer say Check Vent when the lint screen is clean?
The dryer’s lint filter and the home’s dryer vent are separate components. A clean lint screen does not mean the exhaust duct running from the dryer to the exterior is unrestricted.Can a dryer vent warning come on when the vent is clean?
Yes. A dryer can experience restricted airflow because of vent configuration, a crushed connection, restrictive termination, improper ductwork, excessive length, numerous elbows, appliance conditions, or other causes even when there is little lint inside the vent.What does AF mean on a dryer?
On applicable Whirlpool and Maytag dryers, AF means Restricted Air Flow and indicates a problem affecting airflow through the lint screen or dryer exhaust system.What does the Samsung Vent Check light mean?
On applicable Samsung dryers, the Vent Check indicator means the dryer has detected significant exhaust restriction. Samsung states that the indicator may illuminate at approximately 60% restriction and blink at approximately 80%.Is the Check Vent light the same as the Clean Lint Filter light?
No. On dryers that use both indicators, a lint-filter reminder tells the user to clean the dryer’s removable lint screen. A Check Vent or Vent Check warning relates to airflow through the exhaust system.Should I keep using my dryer when it shows a vent warning?
A vent warning indicates that the dryer has detected an airflow condition that should be investigated. Follow the instructions provided by the dryer manufacturer for your specific model and correct the source of the restriction rather than repeatedly clearing or ignoring the warning.Manufacturer Resources
For model-specific troubleshooting, always consult the dryer’s owner’s manual and manufacturer documentation.- LG Dryer Error Codes and Flow Sense Information
- Whirlpool AF and Check Vent Information
- Whirlpool Check Vent Light Information
- Maytag AF and Check Vent Information
- Maytag Check Vent Light Information
- Samsung Dryer Display Icons and Vent Check Information
Manufacturer warning systems, terminology, thresholds, and troubleshooting procedures vary by model. The information above is intended as a general guide to dryer exhaust airflow warnings and is not a replacement for the manufacturer’s instructions for a specific appliance.
